Description

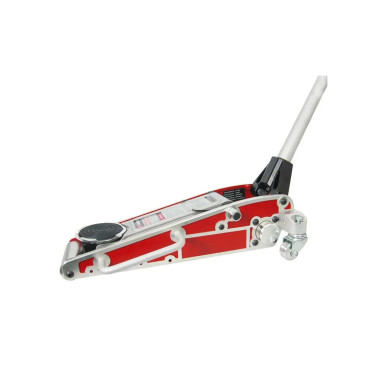

Zinko Zsj-15A 1.5 Ton Aluminum Service Floor Jack
These lightweight aluminum service jacks are easy to maneuver and are a great choice for working on custom cars in the shop or on the race track.
Features
- Fast performance – 3 pumps to maximum height on model ZSJ-15A3, and 6 pumps to maximum height on model ZSJ-15A6.
- Low profile – extremely low starting point designed specifically for race cars and low profile vehicles.
- Roller front wheel, and rear wheel casters make these jacks easily maneuverable.
- Durable – the highest grade die cast aluminum combined with our patented hydraulic system while meeting all of
- Zinko’s high standards make this jack trouble-free.
- Universal – 3,000 lbs. capacity, combined with a notched lift cup that has a removable rubber insert that allows for use on many types of vdhicles. No stop bracket required.
- Features two piece handle that is strong and portable.
- Standard model comes with dual carrying handles. Optional dirt track stabilizer for use on non-paved surfaces are available upon request.
Specifications
| Capacity (Tons) | 1.5 |
|---|---|
| Minimum Height (in) | 3.50 |
| Hydraulic Lift (in) | 14 |
| Maximum Heights (in) | 17.5 |
| Chassis Length (in) | 23.63 |
| Chassis Width (in) | 11.75 |
| Height of Frame (in) | 6.13 |
| Weight (lbs) | 47.000000 |
Downloads
Single Page Flyer
Parts Breakdown
User Manual
