Description

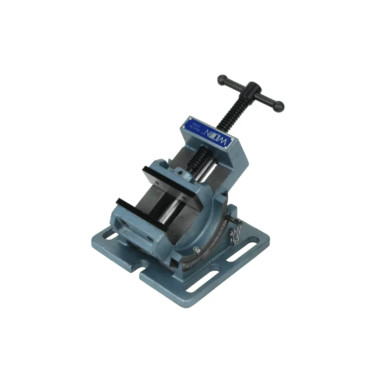

Wilton 3″ Cradle Style Angle Drill Press Vise
The cradle style drill press vise is designed for angled drilling and tapping applications. All boast hardened v-grooved jaws for clamping round objects vertically and horizontally.
Features
- Base has four ½” shoulder slots for quick, easy positioning on the machine table
- Cradle design with 90° vertical indexing, scaled in 1° increments
- Designed for applications including drilling, tapping, and reaming
- Designed for applications including drilling, tapping, and reaming requiring angle setup
- Durable construction with fine grain cast iron castings
- Durable construction with fine grain cast iron castings and hardened smooth vise jaws
- Highly accurate with beds and bases parallel to ±.001”
- Pin hard stops at 0°, 15°, 30°, 45°, 60°, 75° and 90° for common applications
- Side tommy bar allows secure locking at any increment from 0° – 90°
Specifications
| Stock Number | WL9-11753 |
| Jaw Depth (In.) | 1-1/8 |
| Jaw Width (In.) | 3 |
| Model Number | CR3 |
| Weight (Lbs.) | 12 |
