Description

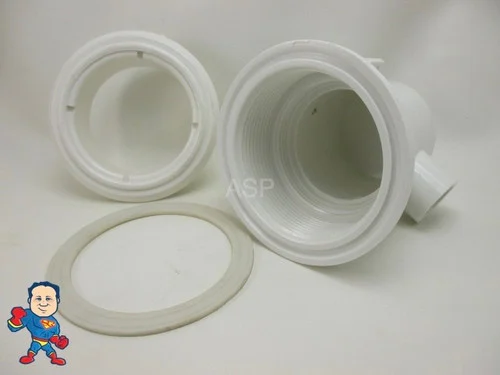

Replacement Short Body Jet Assembly from Waterway’s Power Series line – now discontinued but available at Global while supplies last. This complete jet body assembly features a 4 1/2″ wide face design with a 3 1/2″ cutout requirement.
Technical Specifications: The jet body measures 4 5/8″ in total length from face to rear tip. Water inlet is 3/4″ slip style (approximately 1″ internal diameter). Air inlet features a 3/8″ barb fitting. Assembly includes threaded flange, sealing gasket, and complete jet body.
Installation Options: Global offers optional connection kits to adapt this jet body to various plumbing configurations. Available adaptations include water side connections for 1/2″, 3/4″, or 1″ pipe, plus air side options for 1/2″ pipe or 3/8″ hose. When adapting to 1″ water line hose, an additional 1″ coupler is required.
Available upgrade kits include glue connection kit and complete installation kit for this 4 1/2″ wide face Waterway Power Series short body jet assembly.
| Hole Size | 3-1/2″ |
| Air Connection Size | 3/8″ |
| Jet Part Type | Body |
| Air Connection Type | Barb (b) |
| Water Connection Size | 3/4″ |
