Description

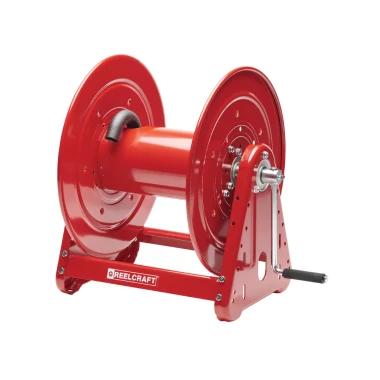

Reelcraft CA30112 L Premium Duty Hand Crank Hose Reel
Reelcraft Series 30000 storage hose reels are designed for rugged, heavy-duty applications requiring long lengths of hose and large storage capacity. All-bolted unitized construction with no welds to fatigue, a heavy gauge steel frame and spool, and aluminum drum ensure the longest service life. NOTE: Reel is used for storage of hose only and will not allow fluid to flow while still on the reel. The hose must be removed from the reel to be connected and used.
- Quality finish and corrosion resistant – Individually powder-coated components offer maximum protection from premature corrosion.
- Easy to add tension – The T-handle tensioning device allows proper tension to be applied to the spool to eliminate the free spooling of the reel.
- Upright is constructed of 11 gauge steel, spool is 16 gauge steel, and drum is aluminum 6063-T6.
- Drive type – hand crank rewind
- Hose not included
Reel Specifications and Dimensions
| Weight | 50 lbs |
|---|---|
| Series |
30000 |
| 1/4″ Hose Capacity |
425′ |
| 3/8″ Hose Capacity |
300′ |
| 1/2″ Hose Capacity |
200′ |
| 3/4″ Hose Capacity |
100′ |
| 1″ Hose Capacity |
50′ |
| Hose Included |
No |
| Max Temperature |
210 °F |
| UPC |
699567002055 |
