Description

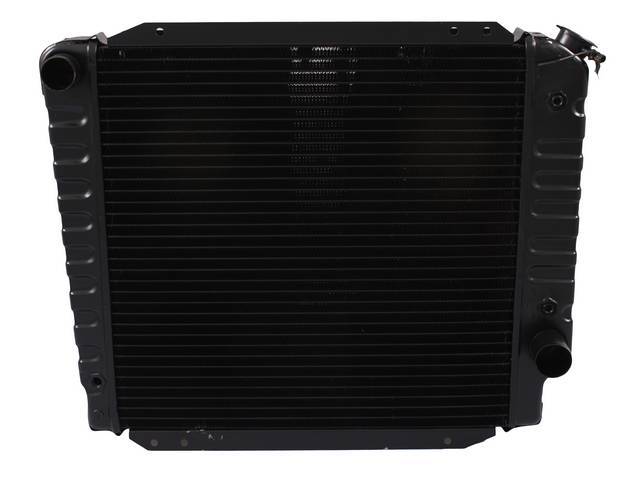

42 row.1/2″ tubes on 9/16 centers.xx cores.14 fins per inch.18 3/4″ core width x 18 3/4″ core height x 2 3/8″ core thickness.Inlet 1 1/2 RH, outlet 1 3/4″ RH.10 trans cooler.Top/bottom flange mount.
Note: Thicker than original radiators may require a shorter fan spacer.Check for a minimum of 1/2 clearance (1 preferred) between the fan and radiator core BEFORE you start your engine!The use of a different length of fan spacer can easily remedy this.Thicker than original radiators may also need modifications to the saddle mounts to fit the thicker tanks and for the location of the drain cocks.
Ford Bronco Years:
1966 (66), 1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73), 1974 (74), 1975 (75), 1976 (76), 1977 (77)
Above years shown are used for searches and are not application listings.
NPD Part Number : F-8005-115
Manufacturer Reference ‘s:092878AND,
