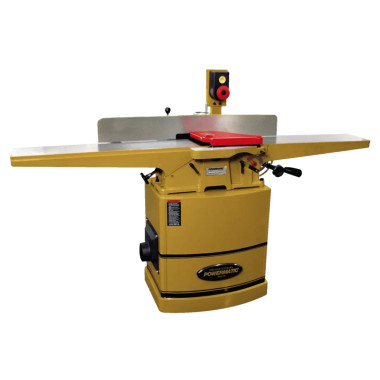

Powermatic 1610084K 60C, 8″ Jointer, 2HP 1PH 230V, Magnetic Switch
This 8″ jointer meets the demand for accuracy while combining unique, user-friendly functions. The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73″ long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The jointer is available with a three high speed steel knife cutterhead, or a helical cutterhead with 54 four-sided knife inserts. The operating switch is high mounted for easy reach, and the push blocks have a magnetic base – store them on any metallic surface for instant access.
Features
- Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth
- Extra long tables are mounted on dovetailed ways for extended workpiece support
- Handwheel operated worm gear system for smooth fence tilting
- High mount switch for operator convenience
- Magnetic push blocks can be stored on the machine within constant reach
- Non-mar fence insert protects table surface
- Three straight high-speed steel knives give a clean cut
- *NOTE: The recommended max cutting depth for non-rabbeting cuts is 1/8”. The max cutting depth for rabbeting cuts is 1/2″ as the manual has always stated.
Specifications
| Stock Number | JT-1610084K |
| Cuts Per Minute | 21 |
| Cutterhead Diameter (In.) | 3 |
| Cutterhead Speed (RPM) | 7000 |
| Cutting Capacity (W x D) (In.) | 8 x 1/2 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (In.) | 4 |
| Fence Tilt (Deg.) | 90 to 45 R |
| Infeed Table Length (In.) | 35-1/4 |
| Model Number | 60C |
| Motor Amps | 9 |
| Motor Power (HP) | 2 |
| Motor Voltage (V.) | 230 |
| Number of Knives | 3 |
| Prewired Voltage (V.) | 230 |
| Max.Rabbeting Capacity (In.) | 1/2 |
| Recommended Circuit Size (Amps.) | 20 |
| Type of Cutterhead | Straight Knife |
| Maximum Cutting Depth (In.) | 1/8″ |
| Weight | 518 |
