Description

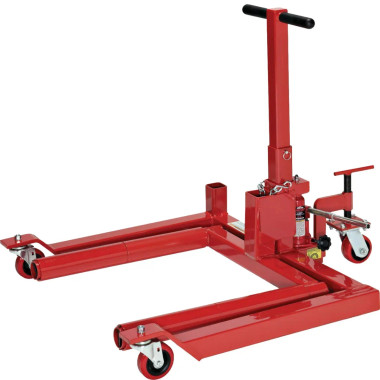

Norco 82320 1500 Lb. Capacity Wheel Dolly
Intended Use
For the removal and installation of single, tandem and duplex tires and wheels.
Features
- Dolly handles any tire diameter and up to 1500 lbs. combined tire and wheel weight.
- Three 4” diameter swivel ball bearing caster wheels provide easy maneuverability and positioning.
- Travel adjustment on rear locking caster wheel matches lifting arms with spindle angle.
- 6’ chain included to secure wheel assembly to dolly during removal and transport.
- Quick disconnect push/pull handle provides unobstructed access to hub area.
Specifications
| Dimensions | |
| Lift Travel | 4.75″ |
| Lift Arms | |
| Spread | 26″ |
| Length | 24.5″ |
| Overall Dimensions | |
| Length | 43.5″ |
| Width | 39.5″ |
| Height | 35″ |
| Shipping Weight | 175 lbs. |
