Description

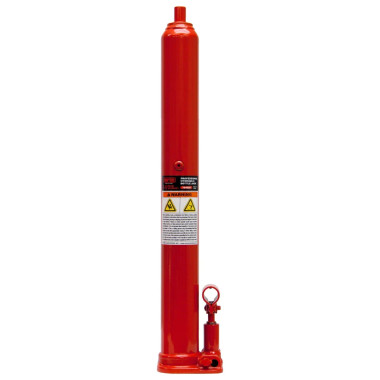

Norco 76402B 1-1/2 Ton Long Hand Bottle Jack
Intended Use
Various farm applications, but primarily used as original equipment for manufacturers of shop cranes, lift tables and any equipment requiring a long hydraulic stroke.
Features
- Same as bottle jack features but designed with larger hydraulic units and larger ram diameters to withstand side loads.
- Larger diameter pump pistons for faster rising action.
- “Parkerized” rams and flash chromed pump pistons inhibit rust.
- Safety bypass and overload systems prevent cylinder damage and prevent the jack from being used beyond the ASME/PASE load-limiting standard.
Specifications
| Dimensions | |
| Low Lift Height | 22.6″ |
| High Lift Height | 41.9″ |
| Stroke | 19.3″ |
| Screw Extension | — |
| Base Size | 4″ x 4.56″ |
| Carry Handle | No |
| Shipping Weight | 17.5 lbs. |
