Description

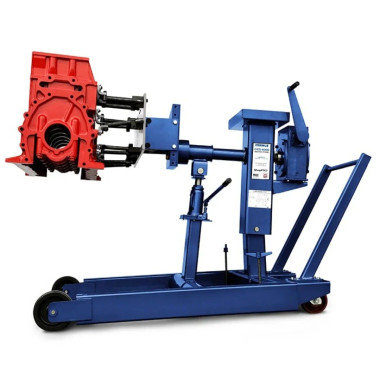

Mahle CES-6000 – 6,000lb HD ENGINE ROLL-OVER STAND
Features
- Fully adjustable to capture a variety of engines and components.
- Laterally adjusts creating a flexible yet sturdy work platform.
- Locking wheels for stability.
- 360° rotation and locking wheels make it perfect for engine rebuilds.
Specifications
| Capacity | 6,000 lbs (2721.55 kg) |
| Height to Center Line | 39″ (99.06 cm) |
| Maximum Overall Length | 66″ (167.64 cm) |
| Overall Width | 49″ (124.46 cm) |
| Maximum Overall Height | 50″ (127 cm) |
| Front Wheels | 8″ Fixed (20.32 cm) |
| Rear Wheels | 6″ Swivel (15.24 cm) |
| Handle Length | 12″ (30.48 cm) |
| Length Inside Headplates | N/A |
| Maximum Engine Swing Radius | 42″ (106.68 cm) |
Downloads
Operation Manual
