Description
IMPORTANT: Currently experiencing stock delays from all suppliers. Orders placed now will ship immediately upon receiving new inventory, which we monitor daily.

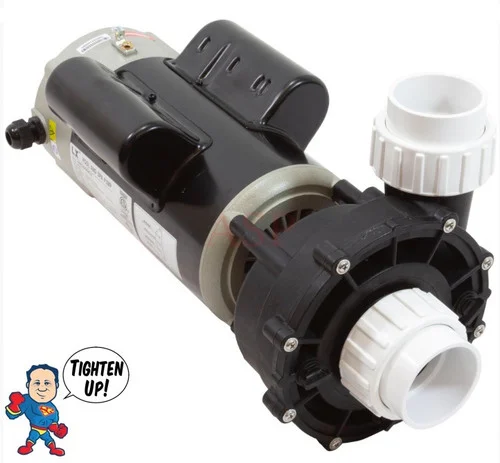

This is a complete 2.0 Horse Power dual-speed 48 frame spa circulation pump operating at 10.0/3.0 Amp designed for Sundance and Jacuzzi spa systems. This baseless, bracketless design pump replaces units bearing factory identification numbers 48WUA2002C-II, 6500-343, and 6500-092. The intake and discharge ports feature 2″ x 2″ threaded connections that physically measure 3″ across (thread edge to thread edge).
Bleeder Barb Compatibility Notice: Examine your current wet end’s bleeder screws. If they require a flat-head screwdriver, you’ll need to order a replacement bleeder barb. Newer wing-nut style bleeders indicate you have the updated barb design and only need replacement if damaged.
Specifications:
- Motor Power: 2.0 HP
- Speed Configuration: 2-Speed
- Voltage: 230V
- Amperage: 10.0A/3.0A
- Frame Size: 48
- Mounting: Bracketless/Baseless design
- Port Threading: 2″ x 2″ (3″ outer thread diameter)
- Compatible Part Numbers: 48WUA2002C-II, 6500-343, 6500-092
