Description

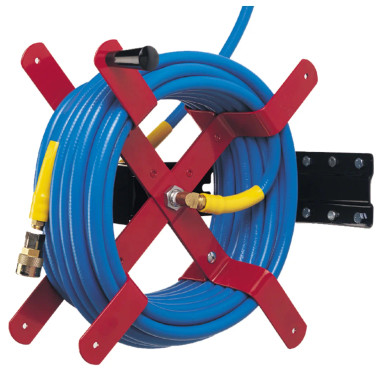

Lisle 50350 Air Hose Reel
*Hose not included
Side Winder Air Hose Reel.
Features
- Coil and Uncoil Your Air Hose Neatly and Quickly to Prevent Damage.
- The Side Winder Air Hose Reel provides a large 10″ diameter reel to prevent tight coils in your air hose.
- Two built-in tool hangers keep your air chuck, blow gun or other air tools handy.
- The constant supply 1/4″ NPT brass swivel keeps air flowing freely and handles up to 250 P.S.I. even when dispensing or winding air hose.
- A coil spring brake keeps reel from unrolling, yet allows easy dispensing of hose.
- Versatile installation, reel can be fastened in any direction, on a bench, under a bench, on a wall, from the ceiling, on a compressor or on a service truck.
- Base has a six hole pattern for bench mounting and a center line pattern for mounting on a stud wall.
- The all steel construction with durable powder baked paint finish is made to last.
- Supplies 28 C.F.M. at 90 P.S.I. Reel holds 150 feet of 5/8″ O.D. hose or 100 feet of 3/4″ O.D. hose.
Specifications
- Dimensions: Diameter 17 3/4″, Width 11″, Height 19″
- Weight: 9.19 lbs.
Optional Accessories (Sold separately):
| Part Number | |
| 50310 | Swivel Joint |
| 50400 | Handle Screw |
Downloads
Instruction Sheet
