Description

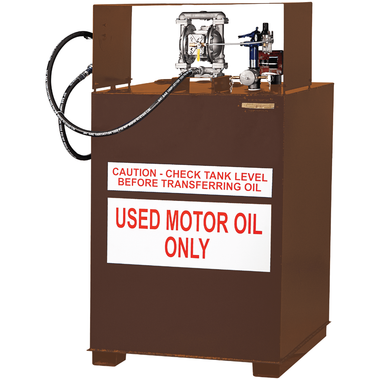

John Dow Industries AGS-245D Used Oil Storage System – 245-Gallon/Vertical
Used oil evacuation, storage and transfer is safer, cleaner and faster with a pump-assist system from JohnDow Industries. Ideal for new car dealers, tire and automotive service stores and dealers, heavy-duty fleet owners and operators and municipal garages, these used oil storage systems are perfect for daily use.
Features
- Meets UL 142 specifications and Uniform Fire Code and NFPA 30 requirements.
- Space-saving vertical design with a 245-gallon capacity.
- UL Listed, 1″ air-operated diaphragm pump has a 30 gpm capacity.
- Automatic pump shut-off to prevent overfilling.
- 3/4″ x 10′ suction hose with quick-connect coupler.
- 2″ drop tube with camlock fitting and dust cover.
- Air filter/regulator.
- Easy-to-read level gauge.
- High gloss enamel finish.
- Protective cover for pump and shut-off valve.
Specifications
| Model No. | Style | Capacity (Gal) | Dimensions (LxWxH) | Weight |
| AGS-245D | Vertical | 245 | 40″ x 37-1/2″ x 69″ | 1100 lbs. |
