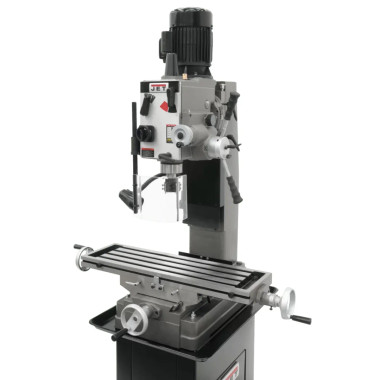

JET Tools JMD-45GHPF Geared Head Square Column Mill/Drill W/Power Downfeed
*Images 3 and 4: Shown JMD-45GHPF with Mill Drill Stand (Sold Separately)
The JET JMD-45GHPF is a square-column geared head mill/drill with power downfeed, whose dovetail ways add the rigidity needed for precision drilling in demanding environments. A six-speed geared head delivers full power to the cutting tool, and the R8 spindle accepts standard mill tooling. An optional stand (p/n 350045) is sold separately.
Features
- Easy to read internal depth gauge.
- Full power to the cutting tools through 6 speed geared head.
- Heavy-duty design allows for a variety of precision drilling applications.
- Mill Drill Stand, p/n 350045, shown in some images, is optional.
- Milling table allows for movement.
- R8 spindle allows use of all mill tooling.
- Rapid spindle speed changes through quick-select gear shift levers.
- Square column with dovetail ways.
Specifications
| Model Number | JMD-45GHPF |
| Base Dimensions (In.) | 26-11/16 x 15-15/16 |
| Face Mill Capacity (In.) | 4 |
| Max Distance Spindle to Table (In.) | 18-1/8 |
| Motor (HP) | 1-1/2HP, 115/230V, 1Ph |
| Number of Spindle Speeds | 6 |
| Overall Dimensions (L x W x H) (In.) | 29 x 36 x 50 |
| Quill Diameter (In.) | 3 |
| Range of Spindle Speeds (RPM) | 65-1550 |
| Spindle Taper (In. x TPI) | R8 |
| Spindle Travel (In.) | 5 |
| Swing (In.) | 19-11/16 |
| Table Longitudinal Travel (In.) | 20-1/2 |
| Table Size (L x W) (In.) | 9-1/2 x 32-1/4 |
| Weight (Lbs.) | 820 |
