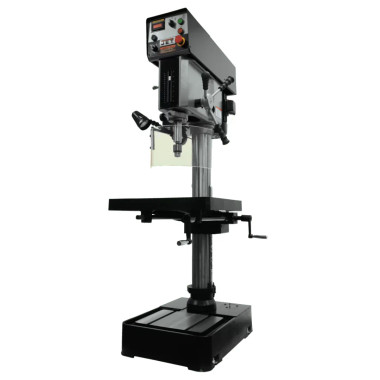

JET Tools JDP-20VST , 1-1/2 Drilling Capacity, 2HP, 230V, 3Ph
The JET JDP-20VST is a 20-inch variable speed drill press with tapping capability, built on a steel column and heavy-duty cast iron base. A massively constructed head and large precision-ground T-slot table support accurate drilling and tapping, with spindle speed adjustable during operation. The drill chuck is not included.
Features
- CSA Coolant System.
- Front Mounted LED Spindle RPM Readout.
- Front mounted positive control depth stop.
- Large Hand Grips designed with the users comfort in mind.
- Large precision ground T-Slot production table for easy set ups.
- Massive 3″ quill diameter.
- Table rotates 360° around the column.
- Drill Chuck not included.
- Tapping Capacity up to 3/4″ in Mild Steel.
- CSA/CUS Certified.
Specifications
| Model Number | JDP-20VST |
| Base Dimensions (In.) | 27 x 19 |
| Column Diameter (In.) | 4-1/2 |
| Drilling Capacity Cast Iron (In.) | 1-1/2 |
| Drilling Capacity Mild Steel (In.) | 1-3/8 |
| Drills to Center of Circle (In.) | 20 |
| Motor (HP) | 2HP, 230V, 3ph |
| Overall Dimensions (L x W x H) (In.) | 38.18 x 27.16 x 79.52 |
| Prewired Voltage (V.) | 230 |
| Range of Spindle Speeds (RPM) | 150 – 2,000 |
| Spindle Distance to Base (In.) | 44-1/2 |
| Spindle Distance to Table (Max.) (In.) | 30-1/4 |
| Spindle Taper (In. x TPI) | MT-3 |
| Spindle Travel (In.) | 6 |
| Style (Type) | Variable Speed |
| Swing (In.) | 20 |
| T-Slot Centers (In.) | 7-7/16 |
| Table Size (L x W) (In.) | 22 x 18-3/4 |
| Table Travel (In.) | 20 |
| Tapping Capacity Cast Iron (In.) | 3/4 |
| Tapping Capacity Mild Steel (In.) | 5/8 |
| Weight (Lbs.) | 780 |
| Work Table Weight Capacity (Lbs.) | 154 |
