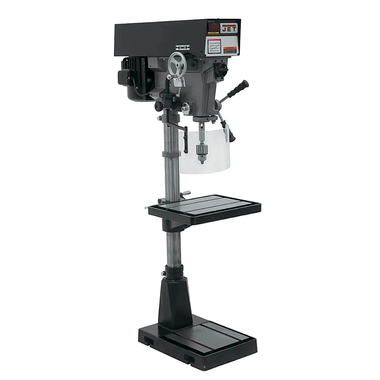

JET Tools J-A5818 15″ Variable Speed Floor Model Drill Press 230/460V
The JET J-A5818 is the 230/460V three-phase variable-speed floor-model drill press with a continuously variable transmission, allowing speed changes during operation. A scale-marked handwheel sets the spindle speed through a reduction gearing system, and full quill bearing support and a 3-inch column maintain stiffness for accurate metalworking.
Features
- Full bearing support on quill for maximum spindle stiffness.
- Handwheel speed adjustment of 400 to 5,000 RPM.
- Large 2-1/4″ quill for greater accuracy.
- 3″ column diameter for maximum head support.
- 6″ stroke for deep hole application.
- Accurate depth stop for precise hole depths.
- 1/2″ drill chuck and arbor included.
- Safety collar.
Specifications
| Model Number | J-A5818 |
| Drills to Center Circle (in.) | 15 |
| Drilling Capacity Cast Iron (in.) | 5/8 |
| Drilling Capacity Mild Steel (in.) | 1/2 |
| Column Diameter (in.) | 3 |
| Distance Column to Spindle (in.) | 7-1/2 |
| Spindle Travel (in.) | 6 |
| Spindle Distance to Base (in.) | 44-1/2 |
| Max Distance Spindle to Table (in.) | 25-3/4 |
| Table Size (in.) | 15 x 18 |
| Table Travel (in.) | 16-3/4 |
| T-Slots Number and Size (in.) | 2 & 1/2 |
| T-Slot Centers (in.) | 5-5/16 |
| Work Table Weight Capacity (lbs.) | 90 |
| Spindle Taper | MT-2 |
| Range of Spindle Speeds (rpm) | 400 to 5000 |
| Base Dimensions (L x W x H / in.) | 20-7/16 x 14-3/16 x 3-1/8 |
| Base Work Table (in.) | 12-1/8 x 11-13/16 |
| Base Slots Number & Size (in.) | 2 & 1/2 |
| Motor (HP) | 1HP, 230/460V, 3Ph |
| Overall Dimensions (L x W x H / in.) | 30 x 20 x 71 |
| Weight (lbs.) | 426 |
