Description

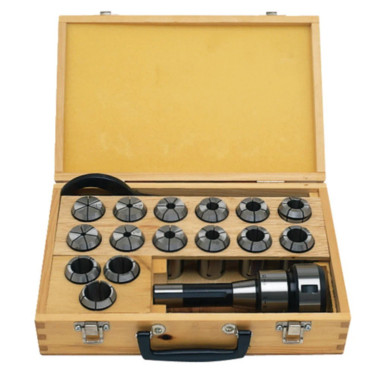

JET Tools CCS-1, R-8 Chuck and Collet Set
The JET CCS-1 chuck and collet set fits R-8 spindle milling machines and replaces individual adaptors with 15 precision spring collets in 1/16-inch increments. Shank sizes change quickly without loosening the draw bar, supporting milling, drilling, reaming and boring.
Features
- Can quickly change from one shank size to another without loosening the draw bar.
- 15 precision spring collets take the place of 15 individual adaptors.
- Can be used for milling, drilling, reaming and boring operations.
- Complete with spanner wrenches.
- Collets are in increments of 1/16″.
- T.I.R. at 2-3/8″ is 0.0008″.
Specifications
| Model Number | CCS-1 |
| Shank Taper | R-8 |
| Capacity (in.) | 1/8-1 |
| Overall Dimensions (L x W x H) (In.) | 9 x 6 x 0.38 |
