Description

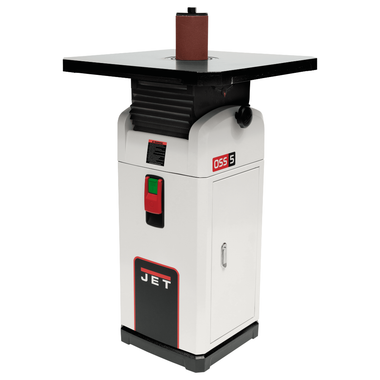

JET Tools 723950 JOSS-S, Floor Model Oscillating Spindle Sander, 1HP, 1Ph, 115V
The JET JOSS-S is a floor-model oscillating spindle sander powered by a 1 HP motor for smoothing curved and contoured edges in wood. Its 1-1/2 inch oscillating action reduces friction heat to protect the workpiece and extend sleeve life, and the table tilts up to 45 degrees front and 15 degrees back; ten spindle assemblies are included.
Features
- 1-1/2″ Oscillating action reduces friction heat to protect wood and prolong sleeve life.
- Baffles create a chamber under the table for improved dust collection.
- Includes 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 1″, 1-1/2″, 2″, 3″ and 4″ spindle assemblies.
- Integrated paddle switch with safety key.
- Main spindle support runs on precision ball bearings and is oscillated by a heavy-duty worm and gear mechanism for consistent performance.
- Powerful 1HP motor is independently mounted inside the base for easy access and service.
- Sealed access door minimizes dust in the storage area.
- Table tilts 45° front and 15° back and features a 90° quick index.
- Worm and gear mechanism runs in an oil bath to prolong its life and durability.
Specifications
| Stock Number | JT-723950 |
| Model Number | JOSS-S |
| Dust Collection Minimum CFM Required (CFM) | 300 |
| Dust Port Outside Diameter (In.) | 4 |
| Spindle Speed (RPM) | 1720 |
| Oscillations Per Minute | 75 |
| Table Size (L x W) (In.) | 24-1/2 x 24-1/2 |
| Table Height from Floor (In.) | 39-3/16 |
| Motor Amps | 11/5.5 |
| Motor Phase | 1 |
| Motor Power (HP) | 1 |
| Motor Voltage (V.) | 115/230 |
| Overall Dimensions (L x W x H) (In.) | 24 1/2 x 24 1/2 x 44 3/16 |
| Prewired Voltage (V.) | 115 |
| Style (Type) | Oscillating Spindle Sander |
| Table Tilt (Deg.) | 45 front/ 15 back |
| Gross Weight | 256.0 |
| Net weight | 216.0 |
