Description

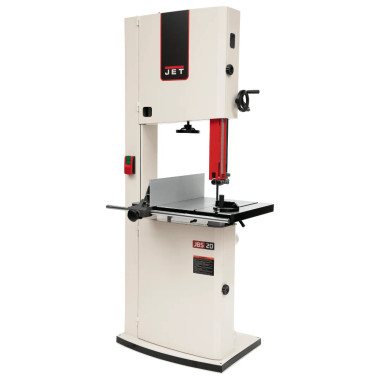

JET Tools 714850 JWBS-20-5, 20″ Bandsaw, 5HP, 230V
The JET JWBS-20-5 is a 20-inch steel-frame bandsaw driven by a 5 HP, 230V motor for resawing and shaping larger boards. A cast-iron fence with micro-adjust dial, four-sided guide post with rack-and-pinion adjustment and tool-less guides support precise, repeatable cuts in the shop.
Features
- Blade tracking window provides clear view of blade during tracking.
- Cast iron handwheels and ergonomic-designed knobs make adjustments smooth and easy.
- Cast iron trunnion for maximum support and stability.
- Conveniently located dual 4″ dust collection ports catch dust and chips at the source.
- Easy-to-read blade tension scale can be viewed through upper door window.
- Heavy duty tensioning with quick release and three settings: full tension, partial tension, and full release.
- Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support.
- Round table insert features leveling screws for precise adjustment.
- Single knob adjustment simplifies the blade tracking process.
- Table tilts 5° left and 45° right to accommodate a wide variety of cuts.
