Description

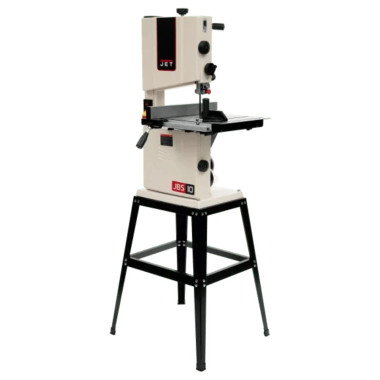

JET Tools 714000 JWB-10, 10″ Open Stand Bandsaw
The JET JWB-10 is a 10-inch open-stand bandsaw suited to shops where floor space is limited. It pairs an extra-large cast iron tilting table with quick-release blade tension, upper and lower ball bearing blade guides and an adjustable LED work light, and the included stand lets it move from benchtop to floor.
Features
- Aluminum extruded fence ensures smooth sliding action.
- Blade site window to view blade tracking.
- Dust port accepts multiple size hoses.
- Extra large cast iron table with retractable extension wing provides additional work piece support.
- Magnifying cursor enlarges measurement scale for precise fence location.
- One piece welded frame design reduces machine vibration and flex.
- Oversized, ergonomic knobs provide ease of use and maximum control.
- Rack and pinion blade guide adjustment with integrated locking knob for precise height control.
- Rigid steel stand allows bandsaw to transition from the benchtop to the floor.
- Table tilting trunnion allows working angles from 0° to 45°.
Specifications
| Stock Number | JT-714000 |
| Band Saw Size/Wheel Diameter (In.) | 10 |
| Cutting Capacity Height (In.) | 4 |
| Minimum Saw Blade Width (In.) | 1/8 |
| Model Number | JWB-10 |
| Motor Amps | 3.4 |
| Motor Power (HP) | 1/2 |
| Motor Voltage (V.) | 115 |
| Table Height from Floor (In.) | 41-1/2 |
| Table Size (L x W) (In.) | 13-1/8 x 13-3/8 |
| Weight | 92 |
WARNING: California Prop 65
Downloads
Manual
