Description

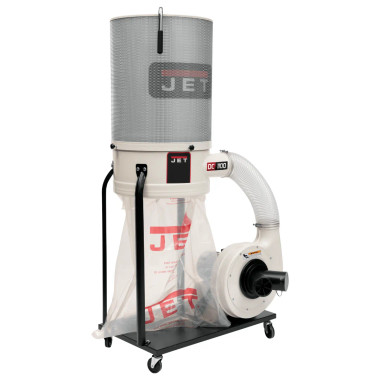

JET Tools 708659K DC-1100VX-CK Dust Collector, 1.5HP 1PH 115/230V, 2-Micron Canister Kit
The JET DC-1100VX-CK is a single-stage dust collector for shop and woodworking machinery, supplied with a 2-micron canister filter kit for finer filtration. It runs on a 1.5HP single-phase 115/230V motor and moves 1,100 CFM, with a Vortex Cone that separates chips ahead of the filter to sustain airflow.
Features
- Eliminates premature filter clogging for sustained performance.
- High air velocity (CFM) design stands up to any competitive specifications.
- Includes four casters for maneuverability and total portability.
- Industrial controls designed for years of trouble-free use.
- Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty.
- Quick-connect collection bags with elastic band for fast, easy installation and removal.
- Single-stage design for economical and quiet operation.
- Vortex Cone improves chip separation and collector bag packing efficiency.
Specifications
| Stock Number | JT-708659K |
| 1-Hose Connection Diameter (In.) | 6 |
| 2-Hoses Connection Diameter (In.) | 4 |
| Air Flow @ 4″ (CFM) | 1100 |
| Bag Diameter (In.) | 20 |
| Collection Bag Capacity (Cu. Ft.) | 5-3/10 |
| Collection Bag Length (In.) | 29 |
| Efficiency (Micron) | 2 |
| Impeller Material | Steel |
| Model Number | DC-1100VX-CK |
| Motor Amps | 11/5.5 |
| Motor Power (HP) | 1-1/2 |
| Prewired Voltage (V.) | 115 |
| Sound Rating (Db.) | 70 – 80 |
| Static Pressure (Wc.) | 10-1/2 |
| Style (Type) | Canister |
| Velocity @ 4″ (FPM) | 12,571 |
| Weight | 172 |
WARNING: California Prop 65
Downloads
Manual
