Description

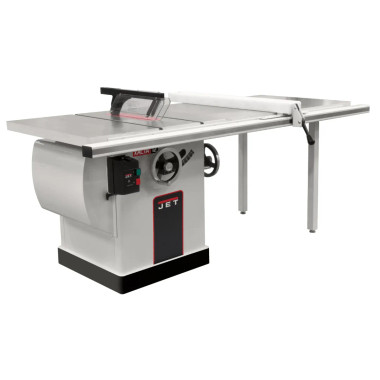

JET Tools 708546PK JTAS-12-DX, 12″ XACTA Saw, 5HP 1PH
The JET JTAS-12-DX XACTA Saw is a 12 in. cabinet table saw powered by a 5 HP single-phase motor, with a 4 in. maximum depth of cut and a riving knife to reduce kickback. A large cast iron table, 50 in. right-of-blade rip capacity and a blade collection shroud support accurate, controlled ripping.
Features
- 40-1/2” fence provides greater stability and better support when ripping.
- 80” of solid cast iron provides a massive work surface.
- Collection shroud around the blade and integrated hose improve dust collection.
- External tool storage for the fence and miter gauge.
- Integrated arbor lock is accessed from table top for rapid blade change.
- Poly V-Belt increases efficiency and reduces slipping and vibration.
- Removal of blade guard, pawls and riving knife takes only seconds.
- Riving knife maintains close blade proximity to reduce chance of kickback.
Specifications
| Stock Number | JT-708546PK |
| Arbor Diameter (In.) | 1 |
| Blade Diameter (In.) | 12 |
| Dust Collection Minimum CFM Required (CFM) | 350 |
| Dust Port Outside Diameter (In.) | 4 |
| Maximum Depth of Cut (In.) | 4 |
| Maximum Diameter of Dado (In.) | 8 |
| Maximum Rip Left of Blade (In.) | 14 |
| Maximum Rip Right of Blade (In.) | 50 |
| Maximum Width of Dado (In.) | 13/16 |
| Miter Gauge Type | T-Slot with Stops |
| Model Number | JTAS-12-DX |
| Motor Amps | 20 |
| Motor Power (HP) | 5 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Style (Type) | Cabinet |
| Table Size (L x W) (In.) | 31-1/2 x 24 |
| Table Type | Cast Iron |
| Weight | 669.3 |
