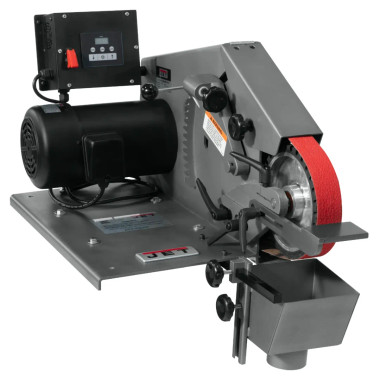

JET Tools 577405 SWG-272VS , 2 x 72 Variable Speed Square Wheel Belt Grinder 115V 1Ph
The JET SWG-272VS is a variable-speed 2″ x 72″ square wheel belt grinder for grinding, deburring and chamfering internal and external surfaces. Its flat platen with idler wheels at each end forms a long, flat grinding surface, while a totally enclosed fan-cooled inverter motor adjusts belt speed across the working range.
Features
- Adjustable Dust port with high dust collection efficiency and drive sparks away from the Operator.
- Aluminum casted drive wheel for years of use.
- Flat and Angular Stock: Platen setting is the perfect angle for high speed, precision flat and level grinding.
- Fully guarded on all grinding surfaces.
- Steel frame and platen provides heavy duty construction.
- Strong cast iron head casting.
- Totally enclosed fan cooled Inverter motor.
Specifications
| Belt Size (W x L) (In.) | 2 x 72 |
| Belt Speed (SFPM) | 2000 to 6000 |
| Motor (HP) | 1 HP, 115/230V, 1Ph |
| Overall Dimensions (L x W x H) (In.) | 35-7/16 x 17 x 21-1/4 |
| Net Weight (Lbs.) | 131 |
| Gross Weight (Lbs) | 167 |
