Description

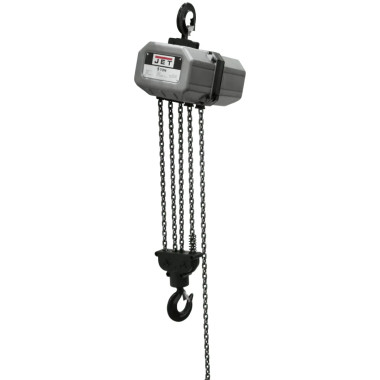

JET Tools 511500 5SS-1C-15, 5 Ton, 1Ph, 15′ Lift, 115/230V, Prewired 230V
The JET 5SS-1C-15 is a 5-ton single-phase electric chain hoist with a 15-foot lift, prewired for 230V commercial and industrial use. Slip-clutch overload protection and a DC electro-magnetic brake hold the load when power is interrupted, while the sealed oil-bath gear train minimizes maintenance.
Features
- 24 volt push button controller with cable strain relief system for durability and reliability.
- All steel construction.
- NEMA 4X compliant push button control pendants.
- Durable powder coat finish.
- Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability.
- Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling.
- Sealed Gear Train- Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep.
- Thermal overload protection.
Specifications
| Stock Number | JT-511500 |
| Capacity (Lbs.) | 6600 |
| Duty Cycle (%) | 25 |
| Duty Cycle Rating | H3 |
| Lift (Ft.) | 15 |
| Lifting Speed (FPM) | 4.9 |
| Load Capacity (Tons) | 5 |
| Max. Number of Starts (Per Hr.) | 150 |
| Max. On Time (Min. / Hr.) | 15 |
| Model Number | 5SS-1C-15 |
| Motor (HP) | 1-3/4 HP, 230V, 1 Ph |
| Weight (Lbs.) | 257 |
| Headroom (In.) | 30-11/16 |
| Overall Width (In.) | 11.81 |
| Motor Current (Amps) | 16 |
