Description

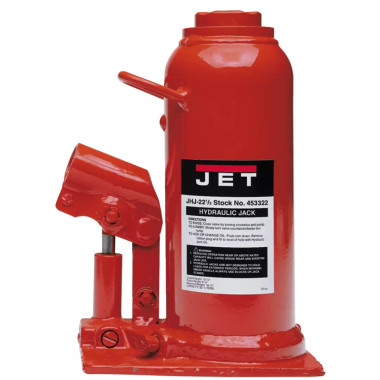

JET Tools 453322 JHJ-22-1/2, 22-1/2 Ton
The JET JHJ-22-1/2 is a 22-1/2-ton hydraulic bottle jack with a chrome-plated pump piston and ram for added corrosion resistance. It operates in upright, horizontal, or angled positions and complies with ANSI/ASME B30.1 and PALD-1 standards.
Features
- Complies with ANSI/ASME B30.1 and PALD-1 Standard.
- Heavy-duty bases are electrically welded providing a stable platform.
- Hydraulic system is protected from damage by internal by-pass mechanism.
- Industrial-duty construction permits use in extreme climates.
- Lifting, pushing, spreading, bending, pressing or straightening capabilities.
- Operating temperature range from -4°F to 158°F.
- Precision machined and polished cylinders provide non-abrasive, leak-free, durable performance.
- Pump handle included.
- Upright, horizontal or angled operating positions increase versatility.
Specifications
| Stock Number | JT-453322 |
| Base Dimensions (L x W) (In.) | 7-1/8 x 5-1/2 |
| Load Capacity (Tons) | 22-1/2 |
| Maximum Height (In.) | 16-7/8 |
| Minimum Height (In.) | 10-5/8 |
| Model Number | JHJ-22 1/2 |
| Piston Height (In.) | 6-1/4 |
| Piston Lift (In.) | 6-1/4 |
| Weight (Lbs.) | 29.35 |
