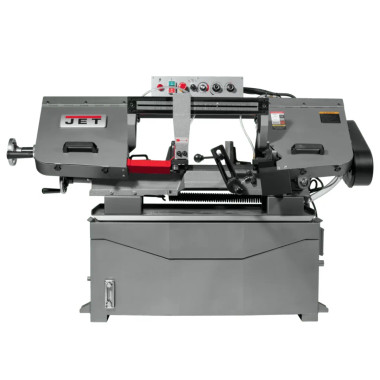

JET Tools 424469 HBS-916EVS, 9″ x 16″ EVS Horizontal Bandsaw CSA Approved 1-1/2HP, 115V, Single Ph
The JET HBS-916EVS is a horizontal bandsaw with a 9 x 16 inch cutting capacity, electronic variable speed and a 1-1/2 HP, 115V single-phase motor. Carbide blade guides with double-row ball bearing support, a hydraulic downfeed and an integrated coolant system fed through the guides support clean, controlled cutting of metal stock.
Features
- Adjustable Material Stop.
- Built-in, self-propelled blade brush extends blade life.
- Carbide blade guides feature parallel double-row ball bearing support.
- Coolant is distributed through the blade guides.
- Electronically controlled blade speed from 82 – 330 SFPM.
- Fully adjustable hydraulic downfeed with separate on/off control valve.
- Standard coolant system with coolant is distributed through the blade guides.
Specifications
| Stock Number | JT-424469 |
| Amperage | 5 |
| Amperage Draw @ 115V 1Ph | 5 |
| Bed Height (In.) | 23.5 |
| Blade Length (In.) | 119-1/2 |
| Blade Speed (SFPM) | EVS 82 – 330 |
| Blade Speeds (SFPM) | (EVS ) 82-330 |
| Blade Wheel Diameter (In.) | 13 |
| Cutting Capacity (W x D) (In.) | 9 x 16 |
| Drive | EVS |
| Model Number | HBS-916EVS |
| Motor (HP) | 1-1/2 |
| Net Weight (Lbs.) | 726 |
| Overall Dimensions (L x W x H) (In.) | 67 x 25 x 46-1/4 |
| Prewired Voltage (V.) | 115 |
| Rectangle at 45 Degrees (In.) | 9 x 6-1/8 |
| Rectangle at 90 Degrees (In.) | 8-1/2 x 14 and 2 x 16 |
| Round at 45 Degrees (In.) | 6-1/8 |
| Round at 90 Degrees (In.) | 9 |
| Shipping Dimensions (L x W x H) (In.) | 67 x 25 x 46-1/4 |
| Shipping Weight (Lbs.) | 818 |
| Vise Swivels (Deg.) | 45 |
| Overall Assembled (Bow Raised) (L x W x H) | 65 x 25 x 67 |
