Description

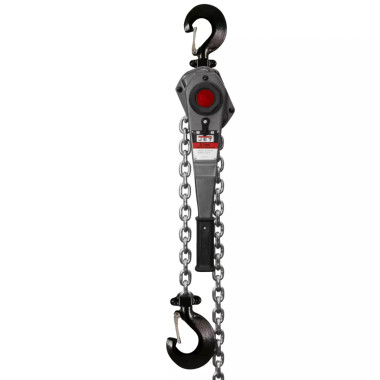

JET Tools 376900 JLH-300-5PSH, JLH Series 3 Ton Lever Hoist, 5′ Lift with Overload Protection & Shipyard Hooks
The JET JLH-300-5PSH is a 3-ton lever hoist with a 5-foot lift, built-in overload protection, and shipyard hooks for severe industrial duty. It works at any load angle for lifting and pulling, while the blunt-tip shipyard hooks resist stretching from point or tip loading.
Features
- All steel construction.
- Caged needle bearings support the load sheave to increase efficiency and promote smooth operation.
- Enhanced ergonomic grip allows for greater operator control and increased comfort.
- Grade 100, corrosive resistant plated load chain is a smaller, more compact link that is 20% stronger than Grade 80 load chain.
- Heat Treated Load Plates.
- Industrial rated alloy steel hooks rotate 360 degrees for easy rigging.
- Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security.
Specifications
| Stock Number | JT-376900 |
| Headroom (in.) | 15-5/9 |
| Capacity (Lbs.) | 7040 |
| Lift (Ft.) | 5 |
| Load Capacity (Tons) | 3 |
| Load Chain Dimensions dia/mm) | 10 x 28 |
| Model Number | JLH-300-5PSH |
| Weight (Lbs.) | 43.1 |
| Lever Length (in.) | 16-1/3 |
| Lbs. of Pull to Lift Capacity | 84 |
