JET Tools 332000 3SS-3C-20, 3 Ton, 3Ph, 20′ Lift, 230/460V, Prewired 460V

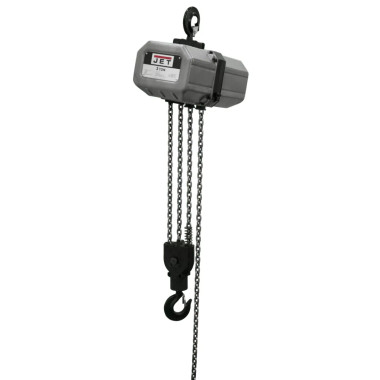

The JET 3SS-3C-20 is a 3-ton three-phase electric chain hoist with a 20-foot lift, prewired for 460V industrial use and intended for dry indoor environments. A slip-clutch overload mechanism and reverse-phase relay protect against overloads and incorrect wiring, while the DC electro-magnetic brake holds the load if power fails.
Features
- All steel construction.
- NEMA 4X compliant push button control pendants.
- Durable powder coat finish.
- Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability.
- Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling.
- Overload Protection- Slip Clutch design prevents the hoist from lifting damaging loads above its rated capacity.
- Push button controller with cable strain relief system for durability and reliability.
- Reverse Phase Relay- A safety switch that protects the hoist from incorrect wiring of the power supply.
Specifications
| Stock Number | JT-332000 |
| Capacity (Lbs.) | 6600 |
| Duty Cycle (%) | 30 |
| Duty Cycle Rating | H4 |
| Lift (Ft.) | 20 |
| Lifting Speed (FPM) | 8 x 24 |
| Load Capacity (Tons) | 3 |
| Max. Number of Starts (Per Hr.) | 180 |
| Max. On Time (Min. / Hr.) | 18 |
| Model Number | 3SS-3C-20 |
| Motor (HP) | 2-1/7 HP, 460V, 3 Ph |
| Weight (Lbs.) | 235 |
| Headroom (In.) | 31-1/2 |
| Overall Width (In.) | 11.81 |
| Motor Current (Amps) | 16 |
