Description

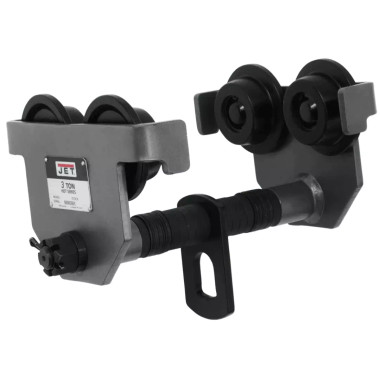

JET Tools 262030 3-HDT, 3 Ton Compact Manual Trolley
The JET 3-HDT is a 3-ton compact manual trolley designed for low-maintenance travel along overhead beams. It adjusts to wide-flange H-beams, standard I-beams or curved track and meets OSHA, ANSI and ASME B30.11/B30.17 standards for safe operation.
Features
- Built-in bumper guards on the side plates increase safety and extend trolley life.
- Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards.
- Easily adjustable to wide-flange H-beams, standard I-beams, or curved track with the included spacer washers.
- Hardened steel wheels and double sealed lubricated ball bearings provide smooth movement.
- Welded all-steel frame and powder coat finish provide maximum durability and protection.
Specifications
| Stock Number | JT-262030 |
| Capacity (Lbs.) | 6600 |
| Hook Mount Headroom (In.) | 6-7/16 |
| Load Capacity (Tons) | 3 |
| Maximum Beam Flange Width (In.) | 8 |
| Minimum Beam Curve Radius (In.) | 51 |
| Minimum Beam Flange Width (In.) | 4 |
| Model Number | 3-HDT |
| Weight (Lbs.) | 51 |
| Wheel Diameter (In.) | 3-15/16 |
| Max. Hook Size (W/in.) | 1-3/4 |
| Minimum Beam Height (In.) | 8 |
| Overall Dimensions (L x W x H / in.) | 12-3/8 x 13-3/4 x 7-7/16 |
