Description

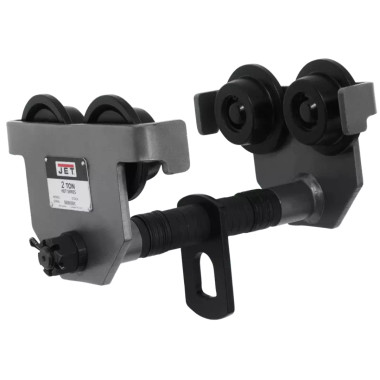

JET Tools 262020 2-HDT, 2 Ton Compact Manual Trolley
The JET 2-HDT is a 2-ton manual push trolley that carries a hoist along an overhead beam. Its compact welded-steel frame adjusts to wide-flange H-beams, standard I-beams, or curved track for a range of overhead material handling setups.
Features
- Built-in bumper guards on the side plates increase safety and extend trolley life.
- Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards.
- Easily adjustable to wide-flange H-beams, standard I-beams, or curved track with the included spacer washers.
- Hardened steel wheels and double sealed lubricated ball bearings provide smooth movement.
- Welded all-steel frame and powder coat finish provide maximum durability and protection.
Specifications
| Stock Number | JT-262020 |
| Capacity (Lbs.) | 4400 |
| Hook Mount Headroom (In.) | 5-3/8 |
| Load Capacity (Tons) | 2 |
| Maximum Beam Flange Width (In.) | 8 |
| Minimum Beam Curve Radius (In.) | 43 |
| Minimum Beam Flange Width (In.) | 3-1/4 – 8 |
| Model Number | 2-HDT |
| Weight (Lbs.) | 32 |
| Wheel Diameter (In.) | 3 |
| Max. Hook Size (W/in.) | 1-1/2 |
| Minimum Beam Height (In.) | 6 |
| Overall Dimensions (L x W x H / in.) | 10-3/16 x 13 x 6-5/16 |
WARNING: California Prop 65
Downloads
Manual
