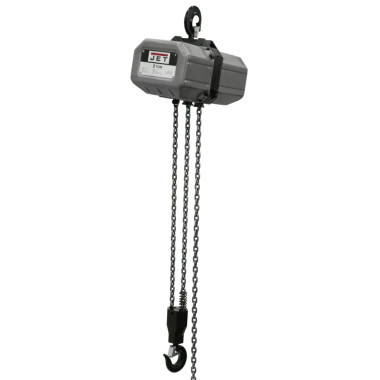

JET Tools 211500 2SS-1C-15, 2 Ton, 1Ph, 15′ Lift, 115/230V, Prewired 230V
The JET 2SS-1C-15 is a 2-ton single-phase electric chain hoist with a 15-foot lift for commercial and industrial material handling. Prewired for 230V, it pairs a slip-clutch overload mechanism with a DC electro-magnetic brake that holds the load if power is interrupted, plus thermal overload protection. The fully enclosed steel housing keeps out moisture, dust and debris.
Features
- All Steel Construction- Fully enclosed, all steel plate construction with a durable powder coat finish keeps out moisture, dust and debris lengthening the life of the hoist.
- Certification- Load tested to 125% of capacity with certificate.
- Control Pendant- 24 volt push button controller with cable strain relief system for durability and reliability in industrial and commercial settings.
- Controls- NEMA 4X compliant push button control pendants.
- DC Electro-Magnetic Brake- An industry-proven safety feature that secures the load even if power is interrupted to the hoist.
- Durable powder coat finish.
- Thermal overload protection.
- Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability.
- JET VOLT and SSC Series Electric Hoists and JET ET Series Electric Trolleys are NOT rated or designed for outdoor use or wet environments.
- Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling.
- Overload Protection- Slip Clutch design prevents the hoist from lifting damaging loads above its rated capacity.
- Reverse Phase Relay- A safety switch that protects the hoist from incorrect wiring of the power supply.
- Sealed Gear Train- Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep.
Specifications
| Stock Number | JT-211500 |
| Capacity (Lbs.) | 2200 |
| Duty Cycle (%) | 25 |
| Duty Cycle Rating | H3 |
| Lift (Ft.) | 15 |
| Lifting Speed (FPM) | 9 |
| Load Capacity (Tons) | 2 |
| Max. Number of Starts (Per Hr.) | 150 |
| Max. On Time (Min. / Hr.) | 15 |
| Model Number | 2SS-1C-15 |
| Motor (HP) | 1-3/4 HP, 230V, 1 Ph |
| Weight (Lbs.) | 198 |
| Headroom (In.) | 28-1/8 |
| Overall Width (In.) | 11.81 |
| Motor Current (Amps) | 16 |
