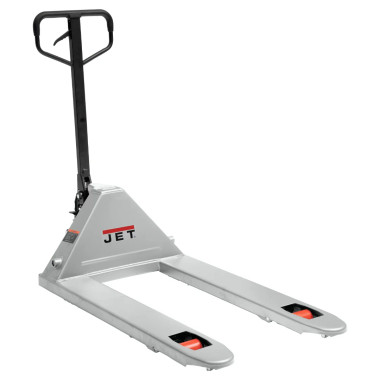

JET Tools 161008 PT-2742JA, 27″ x 42″ 5500LB Pallet Truck
The JET PT-2742JA is a manual hydraulic pallet truck rated for 5,500 lbs, with 27″ x 42″ forks for moving palletized loads in a shop or warehouse. Welded steel construction and a 2-1/2-inch lowered fork height ease pallet entry, while a 180-degree turning radius helps in tight aisles.
Features
- 2/12 inch low profile allows for easy engagement of pallets.
- Lower material in a controlled decent with either hand or foot control for operator convenience.
- Overload Protection prevents lifting loads past maximum capacity.
- Polyurethane 6-1/4 x 2 inch steer wheels for non marking of floors and quieter rolling.
- Pumps designed for any industrial environment.
Specifications
| Stock Number | JT-161008 |
| A Steer Wheel Dimensions (In) | 6-1/4 x 2 |
| B Fork Wheel Dimensions (In) | 2-1/2 x 3-11/16 |
| C Overall Height (In) | 45-1/8 |
| Capacity (Lbs.) | 5500 |
| Fork Width (In.) | 6-1/3 |
| L1 Fork Length (In) | 42 |
| L2 Overall Length (In) | 57 |
| Load Wheel Size (OD x W) (In.) | 2-1/2 x 3-11/16 |
| Lowered Height (In.) | 2.56 |
| Maximum Height (In.) | 6-11/16 |
| Model Number | PT-2742JB |
| Overall Dimensions (L x W x H) (In.) | 57 x 20-1/2 x 45-1/8 |
| Overall Fork Dimensions (L x W) (In.) | 42 x 27 |
| Steer Wheel Size (In.) | 6-1/4 x 2 |
| Turning Radius (Deg) | 180 |
| W1 Fork Width (In) | 6-1/3 |
| W2 Overall Width (In) | 27 |
| Weight (Lbs.) | 157 |
