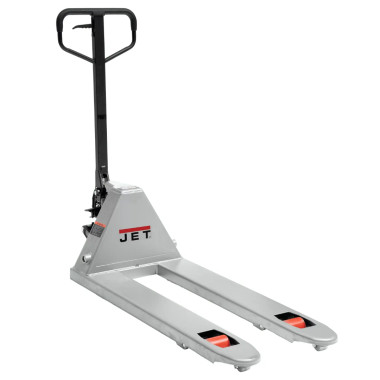

JET Tools 161005 PT-2042JA, 20.5″ x 42″ 5500LB Pallet Truck
The JET PT-2042JA is a 20.5″ x 42″ hand pallet truck rated to 5,500 lb. for moving palletized loads on the warehouse floor. A low 2-1/2-inch lowered profile eases pallet entry and a 180-degree turning radius helps it maneuver in tight aisles.
Features
- 2/12 inch low profile allows for easy engagement of pallets.
- Lower material in a controlled decent with either hand or foot control for operator convenience.
- Overload Protection prevents lifting loads past maximum capacity.
- Polyurethane 6-1/4 x 2 inch steer wheels for non marking of floors and quieter rolling.
- Pumps designed for any industrial environment.
Specifications
| Stock Number | JT-161005 |
| Capacity (Lbs.) | 5500 |
| Fork Width (In.) | 6-1/3 |
| Load Wheel Size (OD x W) (In.) | 2-1/2 x 3-11/16 |
| Lowered Height (In.) | 2.56 |
| Maximum Height (In.) | 6-11/16 |
| Model Number | PT-2042JB |
| Overall Dimensions (L x W x H) (In.) | 57 x 20-1/2 x 45-1/8 |
| Overall Fork Dimensions (L x W) (In.) | 42 x 20-1/2 |
| Steer Wheel Size (In.) | 6-1/4 x 2 |
| Turning Radius (Deg) | 180 |
| Weight (Lbs.) | 152 |
