Description

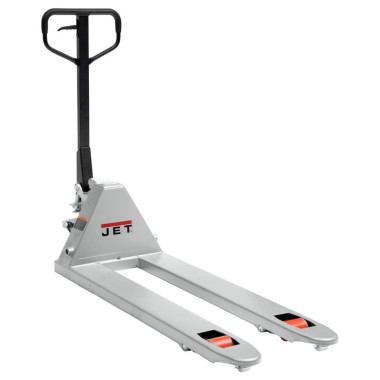

JET Tools 141172 PTW-2048A, 20.5″ x 48″ 6600LB Pallet Truck
The JET PTW-2048A is a manual hydraulic pallet truck rated for 6,600 lbs, with 20.5″ x 48″ forks for handling heavier palletized loads. Welded steel construction and a sub-3-inch lowered fork height let it engage standard pallets, while a 200-degree turning radius improves maneuverability in confined spaces.
Features
- Lower material in a controlled decent with either hand or foot control for operator convenience.
- Overload Protection prevents lifting loads past maximum capacity.
- Polyurethane 6-1/4 x 2 inch steer wheels for non marking of floors and quieter rolling.
- Pump designed so that cylinder will not extend beyond maximum height.
- Pumps designed for any industrial environment.
Specifications
| Stock Number | JT-141172 |
| Capacity (Lbs.) | 6600 |
| Fork Width (In.) | 6-1/4 |
| Load Wheel Size (OD x W) (In.) | 2-7/8 x 3-11/16 |
| Lowered Height (In.) | 2.95 |
| Maximum Height (In.) | 7-1/2 |
| Model Number | PTW-2048B |
| Overall Dimensions (L x W x H) (In.) | 63 x 20-1/2 x 48 |
| Overall Fork Dimensions (L x W) (In.) | 48 x 20-1/2 |
| Steer Wheel Size (In.) | 6-1/4 x 2 |
| Turning Radius (Deg) | 200 |
| Weight (Lbs.) | 156 |
