Description

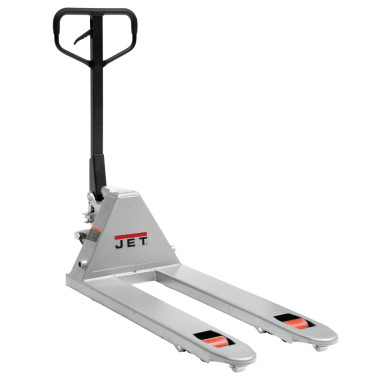

JET Tools 141171 PTW-2042A, 20.5″ x 42″ 6600LB Pallet Truck
The JET PTW-2042A is a 20.5″ x 42″ hand pallet truck rated to 6,600 lb. for heavy palletized loads. Welded steel construction, a low fork profile for easy pallet entry and a 200-degree turning radius with fingertip controls allow single-handed maneuvering in the warehouse.
Features
- Lower material in a controlled decent with either hand or foot control for operator convenience.
- Overload Protection prevents lifting loads past maximum capacity.
- Polyurethane 6-1/4 x 2 inch steer wheels for non marking of floors and quieter rolling.
- Pump designed so that cylinder will not extend beyond maximum height.
- Pumps designed for any industrial environment.
Specifications
| Stock Number | JT-141171 |
| Capacity (Lbs.) | 6600 |
| Fork Width (In.) | 6-1/4 |
| Load Wheel Size (OD x W) (In.) | 2-7/8 x 3-11/16 |
| Lowered Height (In.) | 2.95 |
| Maximum Height (In.) | 7-1/2 |
| Model Number | PTW-2042B |
| Overall Dimensions (L x W x H) (In.) | 57 x 50-1/2 x 48 |
| Overall Fork Dimensions (L x W) (In.) | 42 x 20-1/2 |
| Steer Wheel Size (In.) | 6-1/4 x 2 |
| Turning Radius (Deg) | 200 |
| Weight (Lbs.) | 147 |
WARNING: California Prop 65
Downloads
Manual
