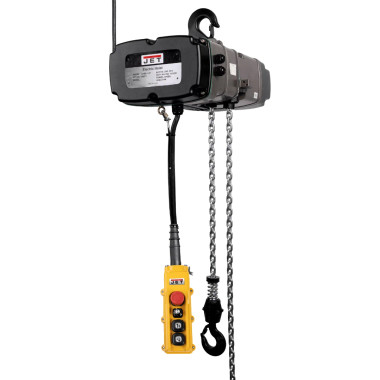

JET Tools 140234 TS050-015 1/2T ELEC HST 15′ LIFT 3 P
The JET TS050-015 is a 1/2-ton two-speed electric chain hoist with a 15-foot lift for material handling in demanding industrial applications. The 230V three-phase motor offers fast and slow lifting speeds for precise load placement, while a combined mechanical brake and overload protection plus a patented gear limit switch safeguard the operator and extend hoist life.
Features
- The 2 in 1 design of the Mechanical Brake and Overload Protection ensure operator safety and extended product life.
- Patented gear limit switch ensures the product switches off power instantly in the case of over lifting or lowering position.
- DC Motor Brake actuates instantly in the event of a power failure to ensure operator safety.
- Two Speed Motor ensures the correct speed for the job with a click of a button.
- 5 Pocket Chain Sprocket provides reduced vibration, smoother operation, and reduced chain wear during long lifting or lowering of loads.
- Pendant Control is IP65 rated and is fully water-proof, insulated and impact resistant for years of service.
Specifications
| Stock Number | JT-140234 |
| Capacity (Lbs.) | 1100 |
| Duty Cycle (%) | 40 / 20 |
| Duty Cycle Rating | H4 |
| Lift (Ft.) | 15 |
| Lifting Speed (FPM) | 33 / 8 |
| Load Capacity (Tons) | 1/2 |
| Max. Number of Starts (Per Hr.) | 240 |
| Max. On Time (Min. / Hr.) | 30 |
| Model Number | TS050-230-015 |
| Motor (HP) | 1-1/2 HP, 230V, 3Ph |
| Weight (Lbs.) | 121 |
| Headroom (In.) | 19-7/10 |
| Overall Width (In.) | 14-3/4 |
| Motor Current (Amps) | 4 / 6.9 |
