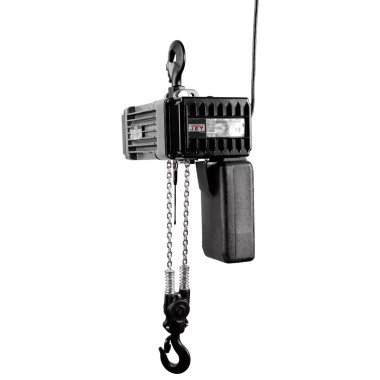

JET Tools 104011 BLVS025-010 1/4T ELEC HST 10′ LIFT 1 P
The JET BLVS025-010 is a 1/4-ton electric chain hoist with a 10-foot lift for overhead lifting in industrial, construction, and transportation work. A single-phase 120V DC brushless motor drives the hoist, and it ships with a wireless controller and a molded carry case for moving between job sites.
Features
- Comes standard with Wireless Controller that can infinitely adjust speed from creep to 4 ft/min with speed dial and max of 41ft/min in high speed.
- TAA Approved.
- Single phase 120V plug enables use in all areas and the Permanent Magnet Brushless Motor has the lowest required starting current available at just 10amp.
- Overload protection using slip clutch system to protect hoist from loads over rated capacities.
- Hoist carries a dust and moisture rating of IP-55 and the wireless transmitter IP-65 which means hoist can stay in the light rain and pendant is dust and water proof.
- DC Brushless motor designed for a longer lifespan than normal Electric Hoist motors reducing maintenance costs.
- 30 / 7.5 Time ratings.
- Electronic controls have protections on them with 10 failure codes that are shown on wireless pendant for troubleshooting.
- 1/8 to 1/2 ton models come in plastic carry case for exceptional mobility.
- Low noise at less than 75 dBA.
Specifications
| Stock Number | JT-104011 |
| Capacity (Lbs.) | 550 |
| Duty Cycle (%) | 30 |
| Duty Cycle Rating | H3 |
| Lift (Ft.) | 10 |
| Lifting Speed (FPM) | 0-10 / 41 |
| Load Capacity (Tons) | 1/4 |
| Max. Number of Starts (Per Hr.) | 180 |
| Max. On Time (Min. / Hr.) | 15 |
| Model Number | BLVS025-010 |
| Motor (HP) | 0.8HP, 120V, 1PH |
| Weight (Lbs.) | 44 |
| Headroom (In.) | 15-3/4 |
| Overall Width (In.) | 10-2/2005 |
| Motor Current (Amps) | 10 |
| Headroom (in.) | 15-3/4 |
