Description

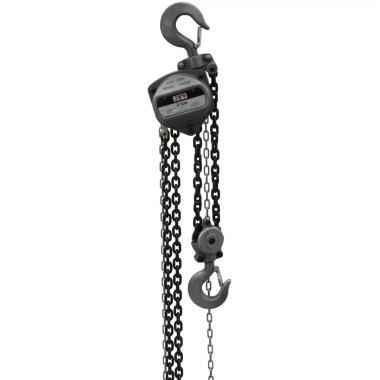

JET Tools 101947 S90-300-50, 3 Ton 50′ Lift
The JET S90-300-50 is a 3-ton manual hand chain hoist from the S90 Series, configured with a 50-foot lift for light-duty industrial lifting. A Weston-style dual pawl brake holds the load and 360-degree rotating alloy steel hooks simplify rigging on the job.
Features
- Safety
- Weston Style Dual Pawl Brake System- Double pawl design increases safety.
- Alloy Steel Hooks- Industrial-rated hooks rotate 360 degrees for easy rigging. Hooks slowly stretch to indicate an overload situation increasing job site safety.
- Durability
- Needle Bearing Design- Promotes long hoist life with low wear reducing downtime.
- Heat Treated Load Plates- Heat treated, case hardened and corrosive resistant coated internal parts extend the life of the hoist in the harshest of environments.
- Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability.
- All Steel Construction- Impact-resistant covers that provide durability and protection.
- Compact Design- Smaller body and lightweight design for low headroom applications and use in confined areas.
- Standards
- Industry- Complies with OSHA Regulations, ANSI / ASME B30.16, and HST-2 Standards.
- Certification- Load tested to 125% of capacity with certificate.
Specifications
| Load Capacity (Tons) | 3 |
| Lift (Ft.) | 50 |
| Overload Protection | No |
| Headroom (In.) 20-1/2 | 20-1/2 |
| Hand Chain Overhaul (Ft.) to Lift Load 1Ft. | 115 |
| Hand Chain Pull Force (LBF) to Move Load | 87 |
