Description

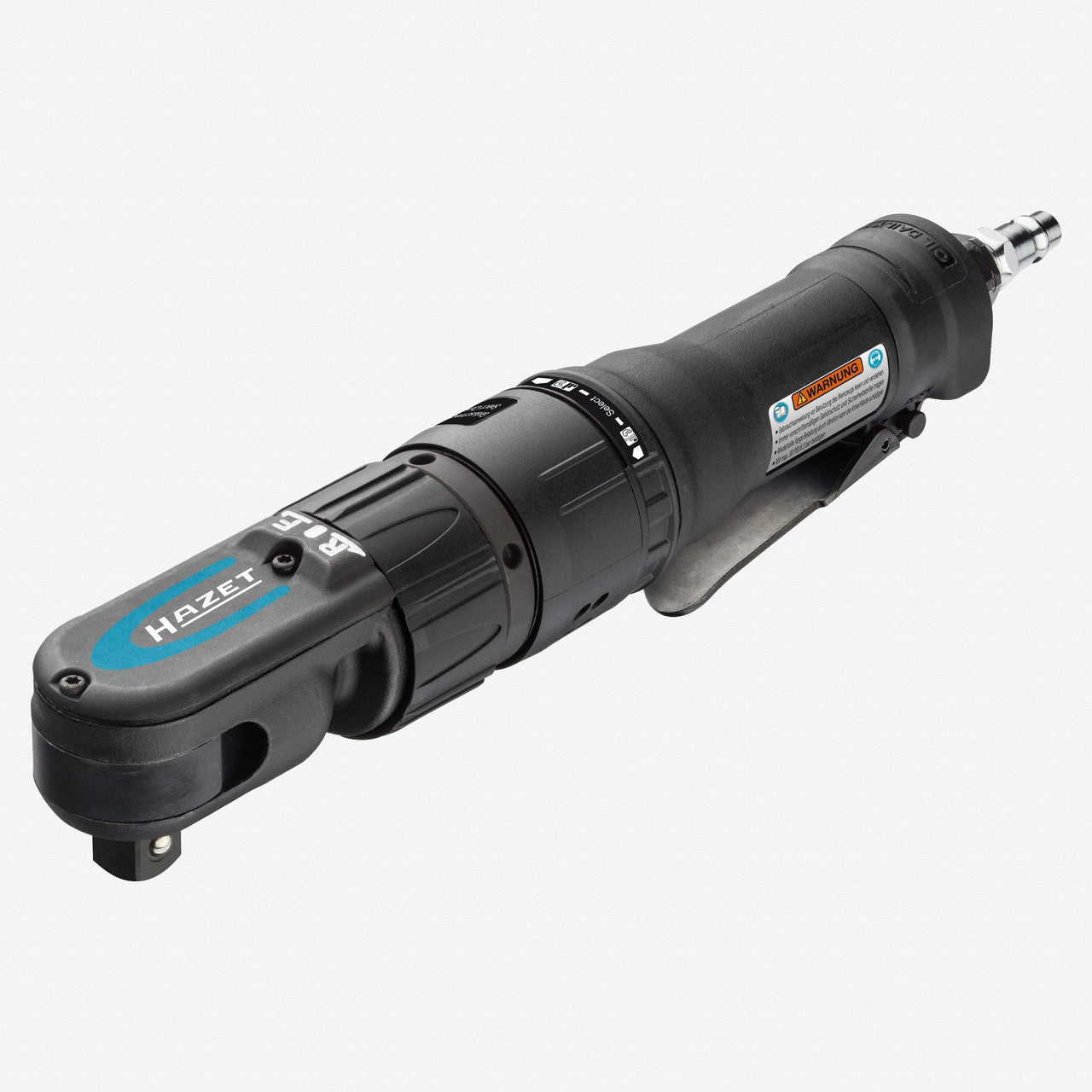

Hazet 9022-360 High Performance Air Ratchet, 1/2″ Square Drive
360 degree rotatable trigger lever
Cold insulated handle
Strong head made of heat-treated special steel
Selector valve for reduction of the noise emissions by approx. 10 db (Quiet Mode):
– Quiet Mode sound power level: 92.5 db(A) Lp W
– Normal sound power level: 102.2 db(A) Lp W
– Sound pressure level: 81.5 db(A) Lp A
Extremely flat head without an interfering edge thanks to the shift lever
Switch ratcheting direction between left and right via the adjusting ring on the handle
Extremely powerful item for applications in areas with very restricted access
Technical Data:
Tightening torque max.: 120 Nm
For hand retightening with torque values: 500 Nm
Revolutions per minute: 200
Air requirement: 107.6 l/min (1.8 l/sec)
Air connection inlet (from the compressor): Inside thread (IG) 12.91 mm (1/4″)
Coupler plug: nominal size 7.2 (included)
Hose diameter (recommended): 10 mm
Working pressure (bar): 6.3
Vibration acceleration: 4.87 m/s2
Forward and reverse: single-stage (right/left)Total length: 285 mm (11.22 in.)
Net weight: 1.55 kg (3.42 lbs)
