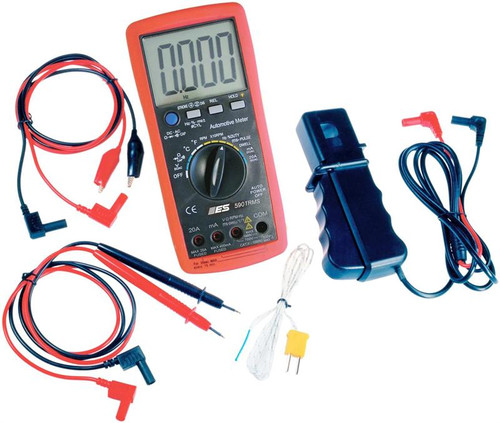

Description
- Features
- 48 Test Ranges, 15 Test Functions
- Auto-ranging
- Modern design, protective rubber boot and case are all one piece
- Huge 2 inch high LCD display with back-lighting, easy to see digits!
- Ms Pulse Width for fuel injector on-time
- Desirable 20 Amp fused test range
- Auto Power-Off, saves batteries
- Relative change function, Data Hold
- Built-in Temperature readings
- Includes zippered storage case
TEST RANGES:
DC Volts: 0-400mV, 4V, 400V, 1000V
AC Volts: 0-4V, 40V, 400V, 700V
DC Amps: 0-40uA, 400mA, 4A, 20A
AC Amps: 0-40uA, 400mA, 4A, 20A
Ohms: 0-400, 4K, 40K, 400K, 4M, 40M
RPM: 4 0-4,000 RPM, 0-12,000 RPM x 10
RPM: 2/DIS 0-4,000 RPM, 0-6,000 RPM x 10
mS Pulse Width: 1 – 10 mS
Dwell: 4 cyl, 5 cyl, 6 cyl, 8 cyl
Duty Cycle: 0.1% – 99.9%
Capacitance: 0-40nF, 400nF, 4uF, 40uF, 100uF
Frequency: 0-5Hz, 50Hz, 500kHz, 5kHz, 50kHz, 500kHz, 10MHz
Temp: -20C to 760C, -4F to 1400F
Continuity: Audible Beep
Diode: Diode Test
