Description

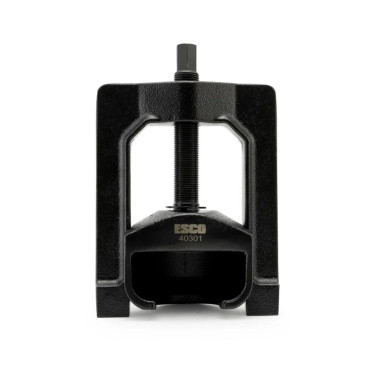

Esco 40301 U-Joint Puller, Intermediate Medium Duty
The Esco U-Joint Pullers are manufactured to withstand rigorous use in day-to-day service applications. Cast out of high-quality heavy-duty steel, U-Joint Pullers are built with quality and precision to last and deliver the best user experience possible. Specifically designed to eliminate the use of dangerous vice-and-socket or hammering methods, ESCO U-Joint Pullers aid in reducing the risk of damaging joints, bearing caps, yokes, and driveshafts. Engineered to be a solution in the shop and provide universal application use to get the job done.
Features
- Manufactured from heavy-duty steel materials
- Designed for use on bearing cup outer diameter 1.25 in – 1.75in.
- Eliminates using vice-and-socket or hammering methods which can be dangerous or cause damage
- Aid in reducing the risk of damaging joints, bearing caps, yokes, and driveshafts
- Engineered to be used with 1/2 in. impact wrench/ratchet or smaller
Specifications
| Bearing Cup Outer Diameter Application | 1.25 – 1.75 in. |
| Impact Drive Size | 9/16 in. |
| Weight | 5 lbs. |
| Product Dimensions (L x W X H) | ~ 8.75 x 5.25 x 2.25 in. |
| Packaging Dimensions (L x W X H) | 10 x 3 x 6 in. |
| Material | heavy duty casted steel |
| Application | Commonly found on class 3-5 trucks and equipment. (Ram 3500/5500, Chevrolet 3500/5500, Ford F-350/550, Isuzu NPR etc.). U-joints with bearing cups 1.25″ to 1.7″ O.D. Spicer SPL 90 & 100 Series. (Not compatible with Double Cardan joints) |
