Description

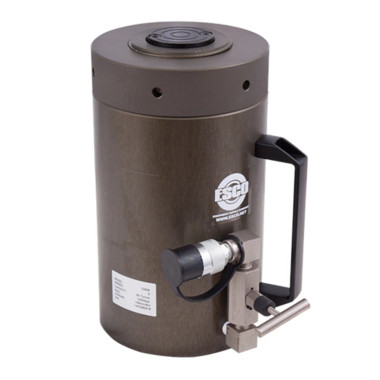

Esco 10809 Jack, HD, 100 Ton Cylinder, With Locking Collar, 6″ Stroke
The ESCO Professional Aluminum Locking Collar Jacks (Cylinders) are known for their quality and lightweight durable design. The most important part of lifting a heavy load is the ability to sustain the load. While most instances support jack stands are used; the Locking Collar Jack (Cylinder) acts as its own self-contained support stand. This aids in complying with OSHA regulation 29CFR1926.305.
Features
- Designed for Use in Multiple Heavy Lifting Applications including OTR/Mining Vehicle Lifting.
- High Tonnage: 100 Ton Lifting Capacity.
- Heavy Duty Aluminum Design at a Fraction of the Weight.
- Lightweight and Compact Design makes Unit(s) Highly Portable.
Specifications
| Lifting Capacity | 100 Tons |
| Stroke | 6 in. – 152mm |
| Max Pressure | 10,000 PSI |
| Min. Height | 13.37 in. – 339mm |
| Max. Height | 19.60 in. – 497mm |
| Cylinder Effective Area | 20.58″ (in²) |
| Oil Capacity | 128.39″ (in³) |
| Cylinder Width | 7.44 in. – 188mm |
| Piston Rod Diameter | Tr110x6mm |
| Nut Thickness | 1.97 in. – 50mm |
| Weight | 66 lbs. – 30 kg |
| UPC | 816904022181 |
Downloads
Manual
Parts Breakdown
Spec Sheets
