Description

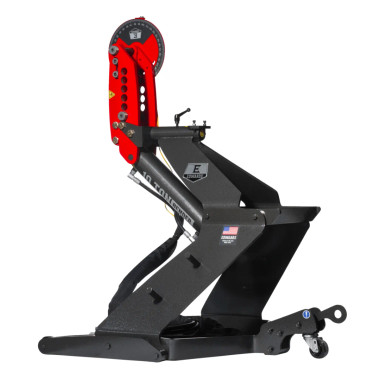

Edwards HAT1000 10 Ton Tube/Pipe Bender
The Edwards 10 Ton Bender provides great flexibility to your shop. With over 300 dies available to bend pipe, tube, or square tube up to 180°, this Bender is a must have for any fabrication shop. Able to operate either Horizontally or Vertically depending on your project and with a heavy-duty rolling base, you can move the Bender out of the way when your project is complete. Must be run off an Edwards Ironworker with PowerLink ™ System or Portable Power Unit.
Features
- 20′ quick-connect hoses for simple “plug & play” operation.
- Bend a wide variety of round or square tube and pipe up to 180°s.
- Built-in storage on the frame keeps your Bender Dies conveniently close.
- Easy-to-use hand/jog controls with integrated E-Stop.
- Heavy-duty rolling stand allows you to move the Radius Roller around as needed.
- Horizontal or Vertical operation provides the user flexibility.
- Integrated proximity sensor and degree wheel ensure you make the right bend every time.
- Over 300 standard dies available to handle your bending needs.
Specifications
| Stock Number | JT-HAT1000 |
| Bend Capacity | 180 |
| Cylinder (In) | 1-3/4″ Ram |
| Gross Weight (Lbs) | 600 |
| Hydraulics (GPM) | 3-1/2 |
| Max. Bend (Deg.) | 180 |
| Model Number | HAT1000 |
| Net Weight (Lbs.) | 600 |
| Overall Dimensions (L x W x H) (In.) | 42 x 45 x 63 |
| Pipe Capacity (In.) | 2 (ID) Sch 40 |
| Product Dimensions (In.) | 40-1/2 x 36-1/2 x 42 |
| Rating (Tons) | 10 |
| Round Pipe Sch. 40 Capacity (In.) | 2 |
| Round Tube Capacity (In.) | 2-1/2 |
| Square Tube Capacity (In.) | 2 (OD) .25 |
| Stroke (In.) | 14 |
| Tube Capacity (In.) | 2-1/2 (OD) .095 |
| Valve Pressure (PSI) | 2750 |
| Weight (Lbs.) | 600 |
