Description

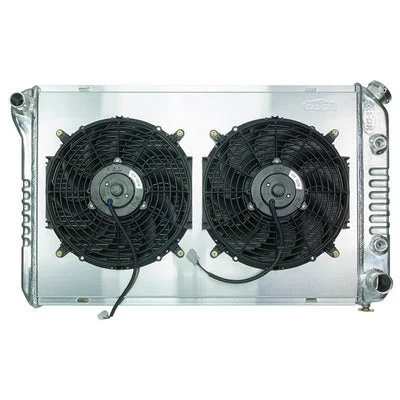

These Cold-Case radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don’t buy a 3 or 4 row aluminum radiator! It doesn’t cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you’d be hard pressed to find a difference over an original versus a Cold-Case.
Note: This radiator has the correct oil and trans fittings used on the 86-87 models, unlike other reproductions on the market.You will need to modify part of the radiator support in order for this radiator to fit.
Fits:
- 1984-1987 Buick Regal Grand National
Details:
- Dual 12 Inch Fans
- 100 percent TIG welded
- (2) 1.25 Inch Tubes
- All Aluminum
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For Auto Trans
- Limited Lifetime Warranty
- Radiator and Fan – 32 in W x 18.5 in H x 3 in D – Driver Side Inlet – Passenger Side Outlet – Aluminum – Natural – Automatic – GM G-Body 1984-87 – Kit
Radiator Specs:
- Core Height: 16.75 inch
- Core Width: 26 inch
- Overall Height: 18.5 inch
- Overall Width: 32 inch
- Overall Thickness: 6 inch
- Tubes: (2) 1.25 inch
- Upper Hose: 1.25 inch
- Lower Hose: 1.50 inch
Specifications
| Brand | Cold Case Radiators |
| Part Number | GMB57AK |
| Application Specific | Yes |
| Pass | Single |
| Row Number | 2 |
| Overall Width | 32 in |
| Overall Height | 18-1/2 in |
| Overall Depth | 3 in |
| Core Width | 26 in |
| Core Height | 16-3/4 in |
| Inlet Side | Driver Side |
| Inlet Upper/Lower | Upper |
| Inlet Size | 1-1/4 in |
| Inlet Style | Hose Barb |
| Inlet Quantity | 1 |
| Outlet Side | Passenger Side |
| Outlet Upper/Lower/Middle | Lower |
| Outlet Size | 1-1/2 in |
| Outlet Style | Hose Barb |
| Outlet Quantity | 1 |
| Tube Size | 1-1/4 in |
| Fluid Cooler | Yes |
| Flow Direction | Crossflow |
| Cap Included | No |
| Fan Included | Yes |
| Fan Quantity | 2 |
| Fan Diameter | 12 in |
| Fan CFM | 2,800 cfm |
| Blade Material | Plastic |
| Blade Color | Black |
| Shroud Material | Aluminum |
| Shroud Color | Natural |
| Material | Aluminum |
| Color | Polished |
| Finish | Polished |
| Quantity | Kit |
Fitment
Vehicle Type:Car
Make:Buick
Fitment:
1984 – 1987 Buick Regal
1984 – 1987 Buick Regal Grand National
1984 – 1987 Buick Regal Limited
1984 – 1986 Buick Regal T-Type
1987 – 1987 Buick Regal GNX
