Description

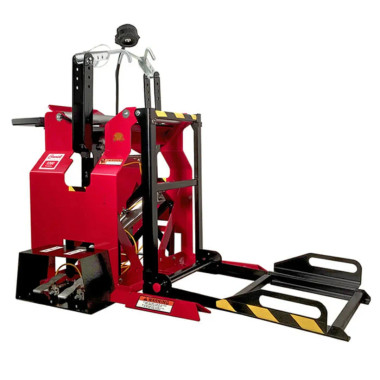

Branick 5300 Tire Spreader
The model 5300 is great spreader whether you are doing inspection or repair. With air-powered tire spread and tire lift, it saves time and reduces back strain from lifting tires. The foot-operated controls keep both hands free to work on the tire, while the RMA-compliant LED light makes your work easy to see. Zinc-plated rollers make rotating the tire a breeze, and the lift-out debris tray makes it easy to clean up. The attached tool tray keeps everything you need within reach. The lift locks up or down to keep it out of the way when not in use.
Features
- Quality All Steel Construction for Strength and Long Life.
- Air Powered Spread and Lift.
- Lift Locks Open and Closed.
- Super Single Ready.
- Easy Rotation with Zinc Plated Rollers.
- LED that is RMA Compliant.
- Lift-out Debris Tray Between Rollers.
- Fast Lock Pin Spread Arm Adjustment.
- Small Footprint.
- Made in USA.
Specifications
| Maximum Bead Diameter | 24.5″ |
| Maximum X-Section | 18″ / 458 mm |
| Spread Arm Type | Air Powered |
| Spread Arm Operation | Foot |
| Working Height | 31″ |
| Tire Lift / Roll On | Lift |
| Light | Included |
| Hook Adjustment | Detent Lock Pin |
| Shipping Weight | 350 |
| Dimensions (inches) | 34 W X 35 D X 38 L |
| Additional Information | Super single capable, Locking Lift,Tool Tray |
Downloads
Manual
Flyer
