Description

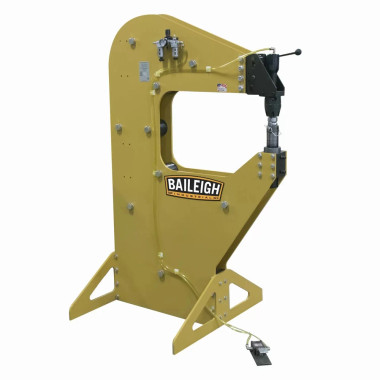

Baileigh PH-28A Pneumatic Power Hammer
Shrink and stretch with air! The compact, USA-made PH-28A hits much harder than traditional pneumatic power hammers. You can even use a thumbnail shrinker die (included).
This air power hammer is recommended for startup automotive shops, metal shapers working on airplane parts, and metal artists.
Special Notes:
- Some applications may require optional tooling. Please contact a Technical Sales Specialist with specific application details.
- For best results, it is recommended to have a constant air supply of 120 psi.
Features
- 28” throat can handle larger panels than the MH-19 can.
- Stretches, shrinks, and planishes up to 16 gauge mild steel.
- Variable speed from 0 to 1,000 beats per minute
- Runs on 120 psi compressed air.
- Regulator on the side lets you control the airflow.
- Air-powered system is much quieter than a mechanical machine.
- Foot pedal operation keeps your hands free to move the material.
- Quick-release handle on the front allows you to lift the tool up and take the material out.
- Comes with 5 tooling sets: 2.5” thumbnail shrinking dies, 2.5” master flat top die.1” linear stretch die,12”, 24”, and 36” radius dies
- Oiler system on the side can deliver oil directly to the tool for convenient maintenance.
Specifications
| Model Number | PH-28A |
| Aluminum Capacity (Gauge) | 14 |
| Included Tooling | 2” Thumbnail Shrinking Dies 2.5” Master Flat Top Die 1” Linear Stretch Die 3” x 36” Radius Die 3” x 24” Radius Die 3” x 12” Radius Die |
| Maximum CFM | 15 |
| Mild Steel Capacity (Gauge) | 16 |
| Range of Speeds | 0 – 1000 beats / min (Variable) |
| Shipping Dimensions (L x W x H) (In.) | 60 x 44 x 77 |
| Throat Depth (In.) | 28″ |
| Tooling Height Adjustment (In.) | 1.5 |
| Weight (Lbs.) | 1000 |
*Specifications subject to change without notice.
