Description

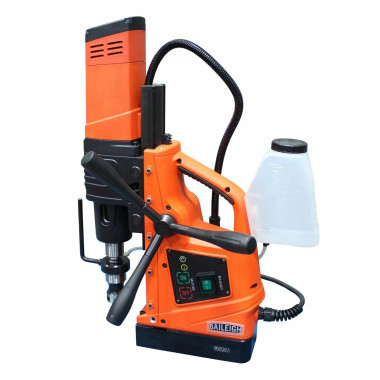

Baileigh MD-5015 Magnetic Drill
The MD-5015 magnetic drill combines a 2-speed motor with an 15,000 N industrial-grade magnet that can hold on at just about any angle imaginable. This drill will deliver years of trouble-free productivity.
*Recommended for: Fabrication shops or structural steel companies.
Features
- Runs on 110-volt power and will work at virtually any site or shop.
- Handles a maximum twist drill capacity of up to 1.25″ and an annular cutting capacity of up to 2″.
- 6.69″ maximum stroke.
- Choose between 2 speed settings, 250 rpm on low and 450 rpm on high, to produce excellent results for most cutting applications.
- Industry standard .75” spindle makes it easy to find compatible tooling anywhere.
- Gravity feed coolant system improves tooling lifespan and makes the cuts faster and more efficient.
- Includes MT3 tool holder so you get start using the MD-6000 right out of the box.
- Sturdy cast steel frame will stand up to maximum capacity materials without flexing.
- You can take the drill with you to jobs in its convenient heavy duty ABS carrying case.
Specifications
| Model Number | MD-5015 |
| Base Size (In.) | 8.26” x 3.93” x 1.77” |
| Input Power | 110 volt |
| Shipping Dimensions (L x W x H) (In.) | 21 x 10 x 29 |
| Speeds | 2 Speeds: 250 – 450 rpm |
| Weight (Lbs.) | 75 |
*Specifications subject to change without notice.
WARNING: California Prop 65
Downloads
Manual
