Description

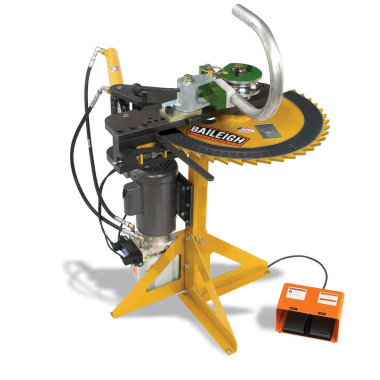

Baileigh Industrial Rotary Draw Bender – Rdb-125
Tired of your exhausting manual bender? This hydraulic rotary draw bender will increase your productivity.
Features
- Requires only 110-volt, single-phase power for easy plug-in almost anywhere.
- Handles a maximum capacity of 2.5” OD tubing, 2” OD Chrome alloy, 2” square tubing, and 2” schedule 40 pipe.
- Maximum centerline of 8”, depending on material’s OD.
- Bends up to 200°, allowing for true 180° bends without having to re-pin the die set.
- Takes only 4 complete pushes to reach 180°.
- Built-in anti-spring back mechanism lets hydraulic cylinder retract without losing its place in the bend.
- Comes with lifetime technical support from our knowledgeable team.
- All capacities based on A53 grade A (mild steel) 48,000 psi tensile materials; heavy wall and high tensile materials may reduce machine capacity.
Specifications
| Model Number | RDB-125 |
| Aluminum Pipe Schedule 40 | 2.5″ (.156) |
| Chromoly Round Tube Wall | 2″ (.125) |
| Input Power | 110 volt |
| Max. Bend (Deg.) | 200 deg. |
| Minimum Center line Radius | .5″ |
| Minimum OD | 0.25 |
| Round Tube Capacity (In.) | 2.5″ (.125) |
| Shipping Dimensions (L x W x H) (In.) | 60 x 44 x 77 |
| Square Tube Capacity (In.) | 2″ (.125) |
| Weight (Lbs.) | 590 |
*Specifications subject to change without notice.
WARNING: California Prop 65
Downloads
Manual
