Description

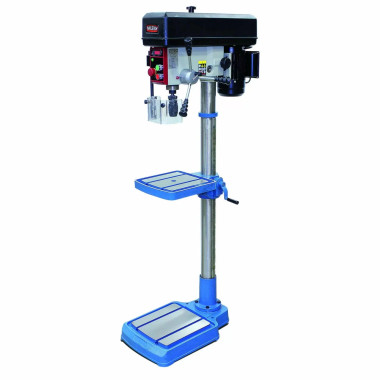

Baileigh DP-1000E Belt Driven Drill Press
This economical belt driven drill press runs smoothly even at full capacity – the DP-1000E is a 15-1/2″ drill press with an MT2 Taper that lets you run tooling at the proper speed to fit your application with its 5 speed pulley configuration which helps extend tooling life.
Features
- .5 hp motor requires 110 volt power and will work at any shop or site.
- Belt driven head drills a maximum capacity of 1” steel.
- 5 speeds in the range from 250 to 2900 rpm to suit your application.
- 3-1/8″ steel column eliminates flexing even when drilling at full capacity.
- Rigid cast iron base and table add strength to the drill’s structure.
- Includes a safety shield around the drill head to protect you.
Specifications
| Model Number | DP-1000E |
| Base Dimensions (In.) | 23″ x 16″ |
| Base Size (In.) | 23″ x 16″ |
| Certification | CE |
| Chuck Size (In.) | B-16 1-16mm Keyless Chuck, MT2 to B16 Arbor, Drift Key |
| Column Diameter (In.) | 3-1/8 |
| Drilling Capacity Mild Steel (In.) | 1″ |
| Input Power | 110 Volt |
| Motor (HP) | 1/2 HP |
| Number of Spindle Speeds | 5 |
| Quill Diameter (In.) | 2″ |
| Range of Spindle Speeds (RPM) | 250, 700, 1150, 1900, & 2900 |
| Shipping Dimensions (L x W x H) (In.) | 60 x 44 x 21 |
| Speeds | 250, 700, 1150, 1900, & 2900 |
| Spindle Distance to Table (Max.) (In.) | 5-1/2″ Min. To 35-1/2″ Max. |
| Spindle Taper | MT2 |
| Spindle Travel (In.) | 3 |
| Swing (In.) | 15-1/2″ |
| Table Material | Cast Iron |
| Table Size (In.) | 12-1/2″ x 12-1/2″ |
| Table T-Slot (In.) | 1/2″ |
| Table Tilt (Deg.) | 360° |
| Distance From Spindle To Base (In.) | 47-1/2″ |
| Shipping Weight (Lbs.) | 290 |
*Specifications subject to change without notice.
