Description

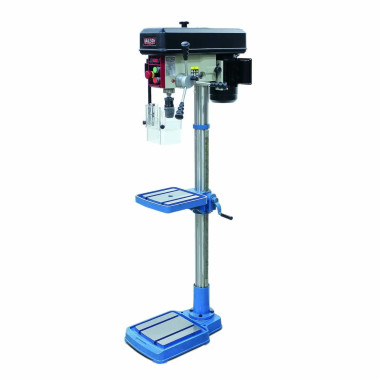

Baileigh DP-0625E Drill Press
This economical belt driven drill press runs smoothly even at full capacity – this 14″ drill press lets you run tooling at the proper speed to fit your application with its 5 speed pulley configuration which helps extend tooling life.
Features
- .5 hp motor requires 110 volt power and will work at any shop or site.
- Belt driven head drills a maximum capacity of 5/8” steel.
- 5 speeds in the range from 250 to 2900 rpm to suit your application.
- 2-7/8″ steel column eliminates flexing even when drilling at full capacity.
- Rigid cast iron base and table add strength to the drill’s structure.
- Includes a safety shield around the drill head to protect you.
Specifications
| Model Number | DP-0625E |
| Base Dimensions (In.) | 25-3/4″ x 16-1/2″ |
| Base Size (In.) | 25-3/4″ x 16-1/2″ |
| Chuck Size (In.) | Includes B-16 1-16mm Keyless Chuck |
| Column Diameter (In.) | 2-7/8 |
| Drilling Capacity Mild Steel (In.) | 5/8″ |
| Input Power | 110 Volt |
| Number of Spindle Speeds | 5 |
| Quill Diameter (In.) | 1-3/4″ |
| Shipping Dimensions (L x W x H) (In.) | 69 x 44 x 23 |
| Speeds | 250, 700, 1150, 1900, & 2900 |
| Spindle Distance to Table (Max.) (In.) | 6″ Min to 36″ Max |
| Spindle Taper | B16 |
| Swing (In.) | 14″ |
| Table Size (In.) | 11″ x 11″ |
| Table Tilt (Deg.) | 360° |
| Distance From Spindle To Base (In.) | 48 |
| Shipping Weight (Lbs.) | 240 |
*Specifications subject to change without notice.
