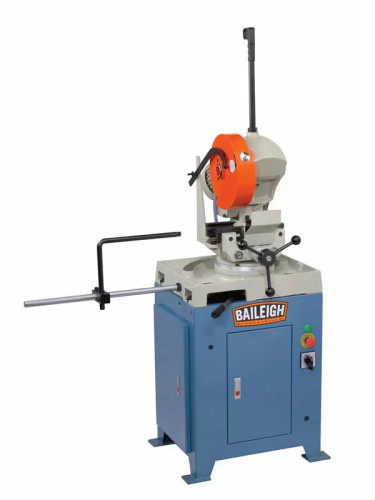

Baileigh CS-275M Manually Operated Cold Saw
Need a Circular Cold Saw to make perfect cuts—every shift, every day? You can rely on the CS-275M. It comes with a self-centering vise, steel stand, and flood coolant system.
*Recommended for:
- Marine rails.
- Playground equipment.
- Hand railings.
- Various chassis applications.
- Other fabrication cutting jobs.
Features
- Accepts an 11” blade with a 2.75” round tube capacity at 90°.
- Miters 45° right and 90° left, perfect for slotting applications.
- 3 hp motor requires 220 volt 3-phase power.
- Choose from 2 speeds depending on your material: between 60 rpm (mild steel) and 120 rpm (aluminum).
- Direct-drive head features all-metal gears, ground and hardened to last for many years.
- Backlash adjustment ensures tight tolerances throughout the life of the saw.
- Self-centering American-style vise keeps the material correctly aligned with the blade for perfect cuts.
- Sturdy stop rod can move left or right to set up repeatable lengths for production runs.
- Heavy folded steel base—larger and wider than our CS-275EU—stabilizes the machine for accurate, wobble-free cutting.
- Flood coolant system helps the blade make burr-free cuts, takes strain off the operator, and enables the blades and saw to last longer.
Specifications
| Model Number | CS-275M |
| Motor (HP) | 3.0 / 1.5 hp |
| Solid Round at 45 Degrees (In.) | 1.5″ |
| Solid Round at 90 Degrees (In.) | 1.5″ |
| Style (Type) | Dual Action, Self Centering |
| Tubing Rectangle at 45 Degrees (In.) | 2.165″ x 2.25″ |
| Tubing Rectangle at 90 Degrees (In.) | 2.75″ x 2.9″ |
| Tubing Round at 45 Degrees (In.) | 2.25″ |
| Tubing Square at 45 Degrees (In.) | 2.165″ x 2.165″ |
| Tubing Square at 90 Degrees (In.) | 2.75″ |
| Weight (Lbs.) | 635 |
*Specifications subject to change without notice.
